What Actually is the Kelvin Emitter Terminal used on IGBTs and SiC Power MOSFETs Some IGBTs and SiC MOSFETs have an additional terminal known as a Kelvin emitter. It may be wondered what this is and how it should be used. All will be explained . . . . This extra terminal is connected to the emitter but routed from the die to the outside world as a separate terminal. The Kelvin emitter is essentially a dedicated connection to the emitter terminal that is separate from the main power current path. Its primary purpose is to provide a clean reference point for the gate drive circuit, minimizing the impact of voltage drops caused by the high switching currents flowing through the parasitic inductance and resistance of the main emitter connection. The presence of a Kelvin emitter terminal provides a number of benefits: Electronic components database Accurate Gate Voltage Control:   High and rapidly changing currents in the power emitter lead can induce voltage drops. If the gate drive circuit uses this point as its reference, these voltage fluctuations can interfere with the actual gate-emitter voltage seen by the IGBT die.
The Kelvin emitter terminal, carrying only the very small gate drive return current, avoids these voltage drops, ensuring a more accurate and stable VGE for precise switching control. Improved Switching Performance:   By providing a clean gate drive reference, the Kelvin emitter helps to achieve faster and cleaner switching transitions (both turn-on and turn-off). This reduces switching losses and allows for higher operating frequencies. Enhanced Noise Immunity:   The separation of the control and power paths improves the noise immunity of the gate drive circuit. Voltage transients on the power emitter are less likely to couple into the sensitive gate drive circuitry. Reduced Oscillations:   More precise gate voltage control, thanks to the Kelvin emitter, can help to dampen oscillations and ringing during switching transitions, leading to improved EMI (electromagnetic interference) performance. Facilitates Optimized Gate Drive Design:   With a more predictable and stable gate-emitter voltage, engineers can design more effective gate drive circuits, optimizing switching speed and minimizing losses without being overly affected by the power loop parasitics. In essence, the Kelvin emitter is a technique, often implemented as an extra pin on the IGBT package (typically in a 4-pin configuration), to implement a four-terminal connection to the emitter. So it’s really a very useful terminal where high current levels are being used. #IGBT #insulatedgatebipolartransistor #SiC #MOSFET #electroniccomponents #kelvinterminal #powerswitching #powerelectronics #electronicsnotes

Take note of the habits of those who win and tailor them to your situation, not everything works the same way in any setting.

InfoSciHub @InfoSciHub

2 weeks ago

Copy the habits of those who win. 📖 The Power of Focus

3 22 124 2K 57

MAC Address: Media Access Control Explained

Harvard University is offering FREE courses 🔥 💻 Computer Science 🐍 Python 🚀 Cybersecurity 📊 Data Science 🕹️ Game Development 🤖 Artificial Intelligence Here are 6 FREE courses to become skilled in 2024 : Open this thread get started today 🧵👇

“Education is not about filling your mind with facts; it’s about sparking curiosity and fostering the ability to think critically.”

Apologies to anyone trying to access my website at the moment. I'm currently experiencing what looks like some form of DDoS attack and the servers are somewhat over worked. We are working to resolve the issue, but in the mean time, if you can't access my website, please keep checking my posts and also watching my YouTube videos: youtube.com/electronicsnot…

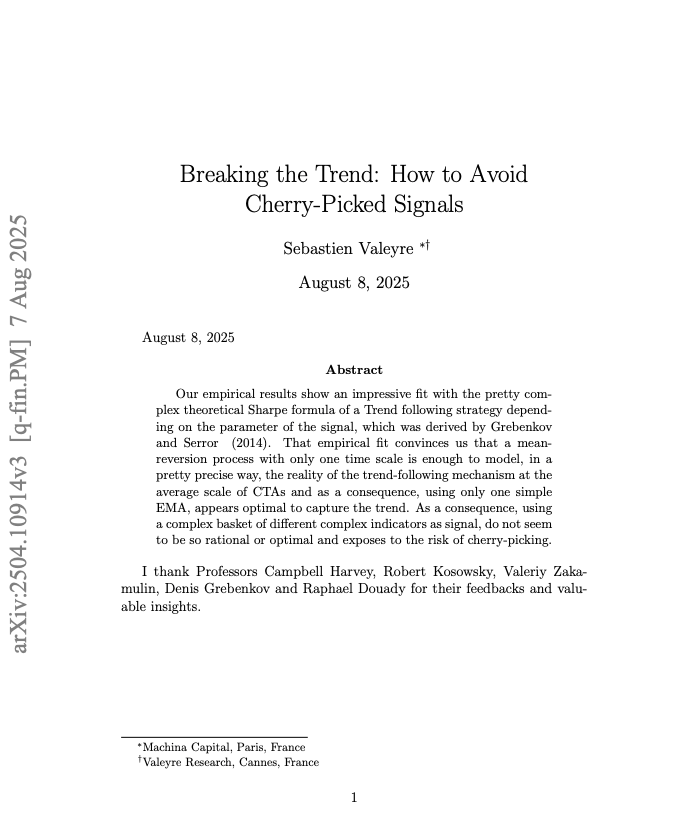

🚨 BREAKING: A new 33-page PDF demystifying how hedge funds create bias-free signals This is what you need to know (Number 2 is the most important finding): 🧵
